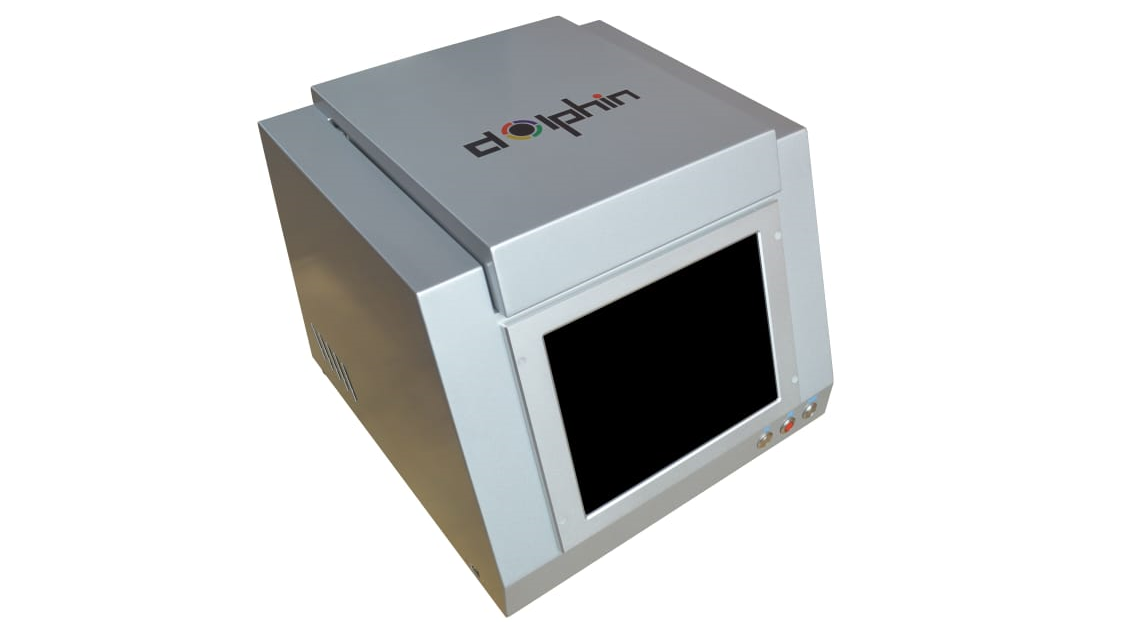

The DOLPHIN XRF-10 Proportional Counter Machine is a smart and dependable gold testing solution, perfectly suited for jewellery showrooms, banks, NBFCs, and financial institutions.
Engineered for accuracy, it can detect up to 6 different metals with precise results within 0.35 points, ensuring confidence in every test. The advanced touchscreen interface offers smooth and user-friendly operation.
Designed for practicality, the machine operates efficiently without the need for air conditioning, reducing operational costs.
Backed by approvals from the Government of India (AERB) and BIS, it guarantees trusted performance, safety, and compliance with industry standards.
Specification:
| 1 | AnalySis Range | 1ppm to 99.99% |
|---|---|---|
| 2 | Accuracy | RSD < 0.1% |
| 3 | Sample Form | Solid, Powder, Liquid |
| 4 | X- Ray Tube Voltage | 5KV~50KV |
| 5 | Camera | HD Camera |
| 6 | Filters | Selectable Customized Switches |
| 7 | Detector Type | Proportional Counter Tube |
| 8 | Test Time | 10Sec ~ 60sec |
| 9 | Weight | 28 Kg |
| 10 | External DimenSions | 304*304*310(mm) |
| 11 | High Voltage Power Supply | 0~50KV |
| 12 | X- Ray Tube Current | 0 microA ~ 1000 micro A |
| 14 | Multichannel Analyzer | Multi Channel Simulation |
| 15 | Sample Chamber Size | 280*280*60(mm) |
| 16 | Measuring Element | Gold, Copper, Silver, Nickel, Zinc, Platinum |
| 17 | Analysis Software | KEY Qualitative Quantitative AnalySis software |
Instruments Environmental Requirements:
| 1 | Ambient Temperature | 5'C ~ 40'C (Suggested that in air conditioning room) |
|---|---|---|
| 2 | Relative Humidity | 15% ~ 90% |
| 3 | Power Requirements | AC 220V+- 5V, 50/60Hz |
No High Power Electromagnetic and Vibration interference Sources Nearby.
