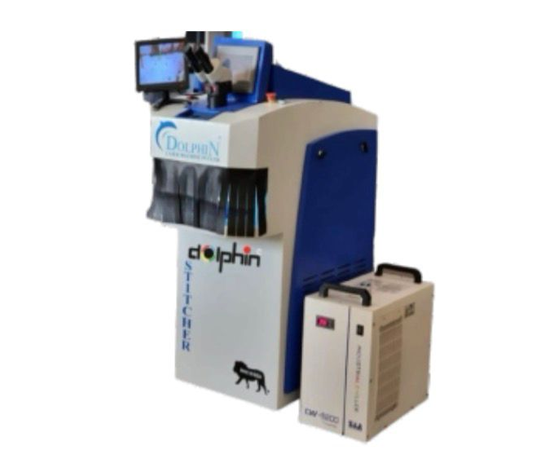

Our Laser Soldering Machine is a high-precision solution designed for jewellery manufacturers, hallmark centres, and repair workshops. This advanced machine uses a focused laser beam to perform accurate and clean welding of gold, silver, platinum, and other metals without damaging surrounding areas or stones.
It ensures strong joints, minimal heat impact, and excellent finishing, making it ideal for delicate jewellery work and intricate designs.
Key Features :
- High precision micro welding
- No damage to stones or surrounding metal
- Strong and clean joints
- Adjustable laser parameters
- Built-in microscope / CCD camera
- User-friendly operation
- Foot pedal control system
- Low maintenance and long life
Specifications :
- Laser Type Nd:YAG Pulsed Laser
- Power 200W
- Wavelength 1064 nm
- Pulse Energy 100 J (Max)
- Pulse Width : 0.1 – 20 ms
- Frequency1 – 50 Hz
- Spot Size 0.2 – 2.0 mm
- Precision ±0.01 mm
- Cooling System Water Cooling
- Power Supply 220V / 50Hz
Applications :
- Gold and silver jewellery repair
- Chain and ring welding
- Stone setting work
- Crack and porosity filling
- Micro welding of small components
Advantages :
- No need for traditional soldering flame
- Minimal heat affected zone
- Saves time and labor
- High quality finishing
- Safe for delicate jewellery
| Model Name | AMPTEK USA |
| Laser Power | 200W |
| Single Pulse Maximum Energy | 100 J |
| Lamp & Mirror | German Sillica |
| Laser Wavelength | 1064 nm |
| Laser Type | ND : YAG |
| Laser Welding Depth | 0.1 – 3.0 mm |
| Pulse Width | 0.1 – 20 ms |
| Combo Laser Welding Frequency | 0 - 60 Hz |
| Combo Laser Welding Frequency | 0 - 60 Hz |
| Spot Size Adjustable | 0.2 – 3.0 mm |
| Spot Size Adjustable | 0.2 – 3.0 mm |
| Machine Power Consumption | ≥ 6 kW |
| Laser Positioning | Red Pointer |
| Electrical Requirement | AC 220V ±10%, 50Hz, 30A |
| Cooling Method | Water Cooling |
| Observing System | 10X Microscope or High Definition |
