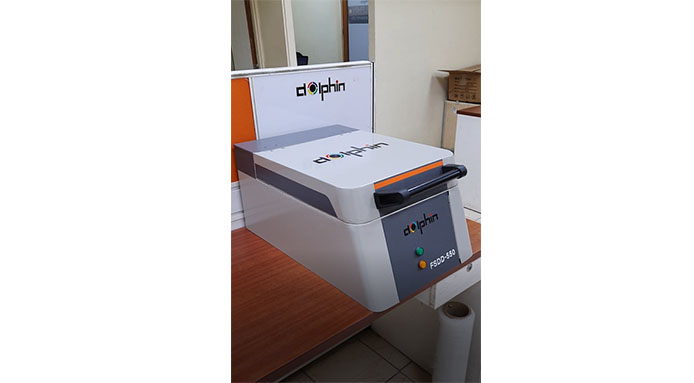

The " DOLPHIN" FSDD -550 Gold Testing Machine – Specifications

The FSDD Gold Testing Machine is a high-end, advanced XRF-based solution designed for hallmarking centres, bullion traders, refineries, and touch centres, delivering ultra-fast and highly accurate metal analysis.

Specification:

• Technology : XRF (X-Ray Fluorescence) – Non-destructive testing
• Detector Type : FSDD (Fast Silicon Drift Detector – USA)
• Detection Capability : 72 element analysis
• Element Range : Sodium (Na) to Uranium (U)
• Accuracy : Up to ±0.10% for gold,+_0.25 for Silver
• Analysis Range : 1 ppm – 99.99% purity detection

Performance:

• Testing Time : 10 seconds (adjustable)
• Sample Types : : Solid, liquid, and powder samples
• Results : : Instant composition & purity analysis
• Repeatability : High stability with excellent consistency

System & Hardware:

• X-ray Tube : Micro-focus tungsten tube (up to 70 kV)
• Detector Resolution : : ~135–140 eV high-resolution detection
• Camera : : Inbuilt high-resolution CCD camera for sample positioning
• Computer : External industrial PC system
• Cooling System : Air-cooled / inbuilt cooling system
• Power Supply : 110–230V AC, 50/60 Hz

Features:

• Non-destructive testing (no damage to jewellery)
• Detects gold, silver, platinum, and trace elements like cadmium, iridium, etc.
• Capable of analyzing coatings, alloys, and plating
• High-speed testing with superior accuracy
• Detects fake or gold-plated jewellery instantly
• Advanced software with report generation

Applications:

• Hallmarking Centres
• Bullion & Jewellery Showrooms
• Gold Refineries & Assaying Labs
• Banks & NBFCs
• Touch / Tounch Centres

Power & Physical Details:

• Power Consumption ~120W
• Weight Approx. 35–40 kg
• OperationContinuous heavy-duty use
• Maintenance Low maintenance

Approvals:

• Approved by Government of India (AERB)
• BIS compliant (model dependent)

Technology From	AMPTEK USA
Time	10 Sec
Accuracy	Gold 0.05%+/- Silver 0.30%+/-
Metals	All Metal
Powder Detection	IR, RU, OS, RE, SB
Analysis Range	0.01-99.99
Collimator	0.5mm
Sample Form	Solid, Liquid, Powder
Application	Hallmarking, Bullion Center
