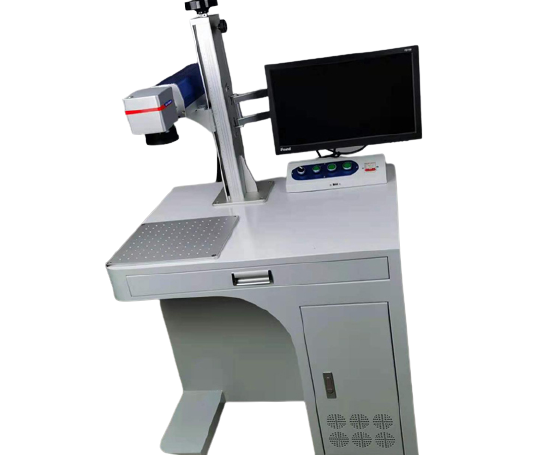

The Laser Marking Machine is a high-speed, precision solution designed for permanent marking and engraving on metals and industrial components. It is widely used in jewellery, manufacturing, electronics, and industrial applications.

Specification:

• Technology Fiber Laser Marking (Non-contact & Non-destructive)
• Laser Power 20W / 30W / 50W / 100W options
• Laser Wavelength1064 nm
• Marking Speed Up to 7000–12000 mm/s
• Marking Area 100×100 mm to 200×200 mm (customizable)
• Accuracy / Repeatability : ±0.01 mm
• Minimum Line Width : 0.01 mm
• Marking Depth : 0.01 – 1 mm (material dependent)

Performance & Features

• Permanent, high-precision marking
• Suitable for gold, silver, stainless steel, aluminum, copper, and alloys
• Capable of marking logos, barcodes, QR codes, serial numbers, and designs
• High-speed operation for mass production
• Non-contact process (no damage to product surface)
• Maintenance-free operation with long service life

System & Hardware:

• Laser Source LifeUp to 100,000 hours
• Cooling System Air-cooled (no water required)
• Control System Computer-based / Touchscreen
• Software Support AI, DXF, PLT, BMP, CAD, etc.

Power & Operation:

• Power Supply220V AC, 50/60 Hz
• Power Consumption ~500W
• Operation : Continuous industrial use
• MaintenanceLow maintenance

Applications:

• Jewellery & hallmarking
• Industrial parts marking
• Electronics & tools
• Automotive components
• Branding & customization

1	Laser Output Power	30W
2	Length of Laser Weave	1060nm
3	Pulse Repeat Frequency of Laser	0-100KHZ
4	Light quality	< 2
5	Marking speed	7000mms/s
6	Min line width	0.01mm
7	Min character	0.15mm
8	Repeat preciSion	0.002
9	Ower Supply	220V/50Hz
10	Overall Power Consumption	500W
11	Marking Depth	0.5mm
12	Perating System	Win98Win2000/WinXp/ WIN 10
13	Cooling Requirements	Air
14	Control Interface	USB(Standar USB)
15	Markig area	150*150mm | 200*200mm
16	Laser Type: weight:	Pulsed or continouse
17	Weight	45 kg
